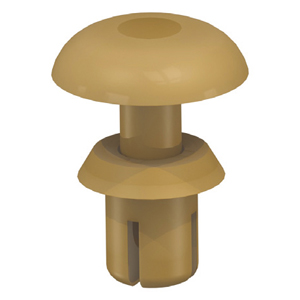

材料 | 尼龙4/6 |
颜色 | 棕褐色 |
阻燃等级 | UL94-V2 |
特点 | 可承受152°C的高温 |

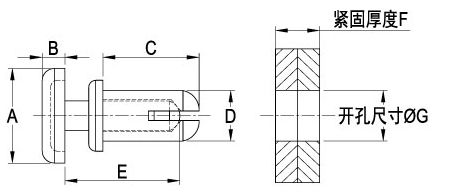

| 零件号 | 开孔尺寸 ΦG | 紧固厚度F | ΦA | B | C | ΦD | E |
| EV103-22140001 | 3.1 - 3.2 | 1 - 2 | 6.4 | 1.6 | 3.5 | 3 | 5.1 |
| EV103-22140002 | 3.1 - 3.2 | 2 - 3 | 6.4 | 1.6 | 4.5 | 3 | 6.1 |
| EV103-22140003 | 3.1 - 3.2 | 3 - 4 | 6.4 | 1.6 | 5.6 | 3 | 6.1 |
| EV103-22140004 | 3.1 - 3.2 | 4 - 5 | 6.4 | 1.6 | 6.5 | 3 | 7.1 |
| EV103-22140005 | 3.1 - 3.2 | 5 - 6.5 | 6.4 | 1.6 | 8 | 3 | 9 |
| EV103-22140006 | 3.6 - 3.7 | 1.2 - 2.1 | 6.4 | 1.6 | 3.5 | 3.5 | 5.1 |
| EV103-22140007 | 3.6 - 3.7 | 2.2 - 3.1 | 6.4 | 1.6 | 4.5 | 3.5 | 6.1 |
| EV103-22140008 | 3.6 - 3.7 | 3 - 4 | 6.4 | 1.6 | 5.6 | 3.5 | 7.1 |
| EV103-22140009 | 4.1 - 4.2 | 2.5 - 3.5 | 8 | 1.8 | 5 | 4 | 7.1 |
| EV103-22140010 | 4.1 - 4.2 | 3.5 - 4.5 | 8 | 1.8 | 6 | 4 | 7.1 |
| EV103-22140011 | 4.1 - 4.2 | 4.5 - 5.5 | 8 | 1.8 | 7.2 | 4 | 9 |
| EV103-22140012 | 4.1 - 4.2 | 5.5 - 6.5 | 8 | 1.8 | 8 | 4 | 9 |
| EV103-22140013 | 4.1 - 4.2 | 7.5 - 8.5 | 8 | 1.8 | 10 | 4 | 11 |
