材料 | 天然尼龙 |
颜色 | 自然色 |
阻燃等级 | UL94-V2 |

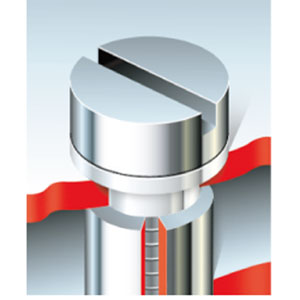

特点 | 防止接触导电材料 |
有助防止零件振动松动 | |
准确定位并间隔装配件 |

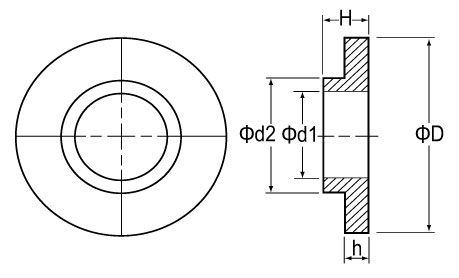

| 零件号 | 内径 | 总厚度 | d2 | D | h |
| EV213-22010001 | 3.1 | 3.0 | 3.9 | 10.0 | 1.3 |
| EV213-22010002 | 3.1 | 3.0 | 5.9 | 10.0 | 1.3 |
| EV213-22010003 | 3.1 | 3.5 | 6.9 | 15.0 | 1.5 |
| EV213-22010004 | 4.2 | 3.0 | 4.9 | 10.0 | 1.3 |
| EV213-22010005 | 4.2 | 3.0 | 5.9 | 10.0 | 1.3 |
| EV213-22010006 | 4.2 | 3.0 | 6.9 | 15.0 | 1.5 |
| EV213-22010007 | 4.2 | 3.5 | 7.9 | 15.0 | 1.5 |
| EV213-22010008 | 5.2 | 3.0 | 5.9 | 10.0 | 1.3 |
| EV213-22010009 | 5.2 | 3.5 | 6.9 | 15.0 | 1.5 |
| EV213-22010010 | 5.2 | 3.5 | 8.9 | 15.0 | 1.5 |
| EV213-22010011 | 5.2 | 3.5 | 9.9 | 15.0 | 1.5 |
| EV213-22010012 | 6.2 | 3.5 | 6.9 | 15.0 | 1.5 |
| EV213-22010013 | 6.2 | 3.5 | 8.9 | 15.0 | 1.5 |
| EV213-22010014 | 6.2 | 3.5 | 9.9 | 15.0 | 1.5 |
| EV213-22010015 | 6.2 | 3.5 | 11.9 | 18.0 | 1.5 |
| EV213-22010016 | 8.2 | 3.5 | 8.9 | 15.0 | 1.5 |
| EV213-22010017 | 8.2 | 3.5 | 9.9 | 15.0 | 1.5 |
| EV213-22010018 | 8.2 | 3.5 | 10.9 | 18.0 | 1.5 |
| EV213-22010019 | 8.2 | 3.5 | 11.9 | 18.0 | 1.5 |
| EV213-22010020 | 10.2 | 3.5 | 10.9 | 18.0 | 1.5 |
| EV213-22010021 | 10.2 | 3.5 | 11.9 | 18.0 | 1.5 |
| EV213-22010022 | 12.2 | 4.0 | 14.8 | 25.0 | 2.0 |
| EV213-22010023 | 12.2 | 4.0 | 17.8 | 25.0 | 2.0 |
| EV213-22010024 | 14.2 | 4.0 | 15.8 | 25.0 | 2.0 |
| EV213-22010025 | 14.2 | 4.0 | 17.8 | 25.0 | 2.0 |
| EV213-22010026 | 16.2 | 4.0 | 17.8 | 25.0 | 2.0 |
