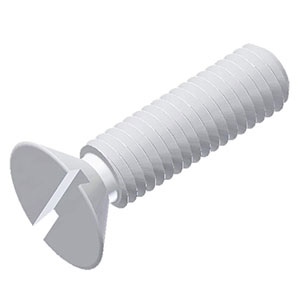

义文机电公制开槽沉头螺钉 EV110-2211参数信息

300

未标题-1 TIM截图20170609105812

材料	尼龙6/6
颜色	自然色
阻燃等级	UL94-V2

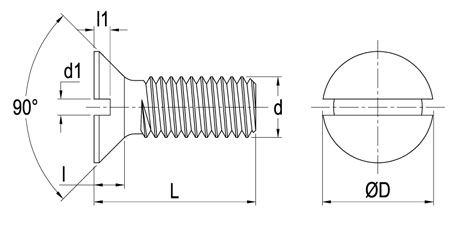

	参照ISO 2009,NFE25-123，DIN 963尺寸公差

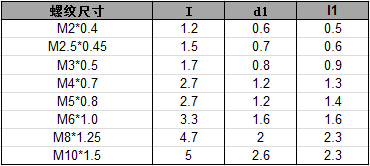

零件号	螺纹规格	牙距	长度	头径	头高	槽宽
EV110-22110001	M6	1	10	11	3.3	1.6
EV110-22110002	M6	1	12	11	3.3	1.6
EV110-22110003	M6	1	16	11	3.3	1.6
EV110-22110004	M6	1	20	11	3.3	1.6
EV110-22110005	M6	1	25	11	3.3	1.6
EV110-22110006	M6	1	30	11	3.3	1.6
EV110-22110007	M6	1	40	11	3.3	1.6
EV110-22110008	M6	1	50	11	3.3	1.6
EV110-22110009	M6	1	60	11	3.3	1.6
EV110-22110010	M8	1.25	16	14.5	4.7	2
EV110-22110011	M8	1.25	20	14.5	4.7	2
EV110-22110012	M8	1.25	25	14.5	4.7	2
EV110-22110013	M8	1.25	30	14.5	4.7	2
EV110-22110014	M8	1.25	40	14.5	4.7	2
EV110-22110015	M8	1.25	60	14.5	4.7	2
EV110-22110016	M10	1.5	20	18	5	2.6
EV110-22110017	M10	1.5	30	18	5	2.6
EV110-22110018	M10	1.5	35	18	5	2.6
EV110-22110019	M10	1.5	40	17.5	5	2.6
EV110-22110020	M2	0.4	6	4	1.2	0.6
EV110-22110021	M2	0.4	8	4	1.2	0.6
EV110-22110022	M2	0.4	25	4	1.2	0.6
EV110-22110023	M2.5	0.45	6	4.7	1.5	0.7
EV110-22110024	M2.5	0.45	8	4.7	1.5	0.7
EV110-22110025	M2.5	0.45	25	4.7	1.5	0.7
EV110-22110026	M3	0.5	4	6	1.7	0.8
EV110-22110027	M3	0.5	6	6	1.7	0.8
EV110-22110028	M3	0.5	8	6	1.7	0.8
EV110-22110029	M3	0.5	10	6	1.7	0.8
EV110-22110030	M3	0.5	12	6.3	1.7	0.8
EV110-22110031	M3	0.5	16	6	1.7	0.8
EV110-22110032	M3	0.5	20	6	1.7	0.8
EV110-22110033	M3	0.5	25	6.3	1.7	0.8
EV110-22110034	M3	0.5	30	5.6	1.7	0.9
EV110-22110035	M3	0.5	40	5.6	1.7	0.9
EV110-22110036	M4	0.7	8	7.8	2.7	1.2
EV110-22110037	M4	0.7	10	7.8	2.7	1.2
EV110-22110038	M4	0.7	12	7.8	2.7	1.2
EV110-22110039	M4	0.7	16	7.8	2.7	1.2
EV110-22110040	M4	0.7	20	7.8	2.7	1.2
EV110-22110041	M4	0.7	25	7.8	2.7	1.2
EV110-22110042	M4	0.7	30	7.8	2.7	1.2
EV110-22110043	M5	0.8	8	10.3	2.5	1.4
EV110-22110044	M5	0.8	10	10	2.7	1.2
EV110-22110045	M5	0.8	12	9	2.7	1.2
EV110-22110046	M5	0.8	16	10	2.7	1.2
EV110-22110047	M5	0.8	20	10	2.7	1.2
EV110-22110048	M5	0.8	25	10	2.7	1.2
