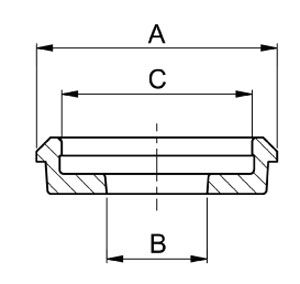

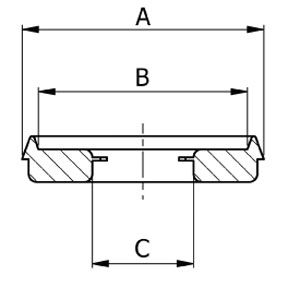

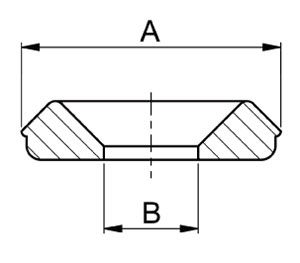

垫圈 类型1 垫圈 类型2 垫圈 类型3 垫圈 类型4

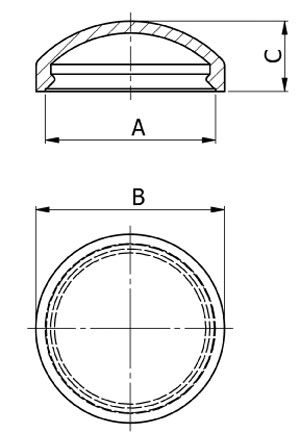

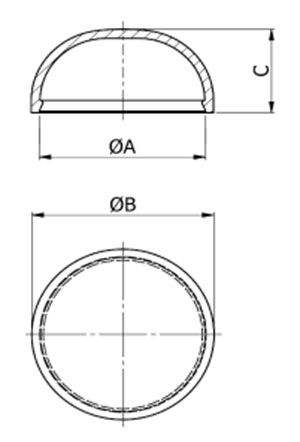

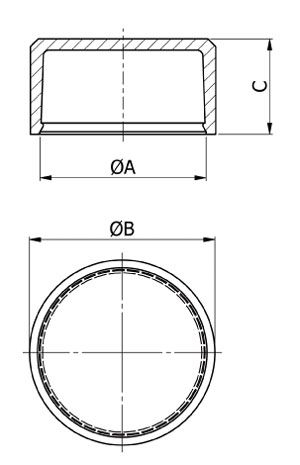

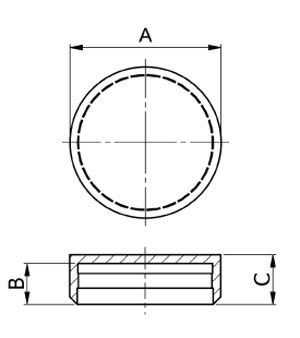

盖子 类型1 盖子 类型2 盖子 类型3 盖子 类型4 盖子 类型5

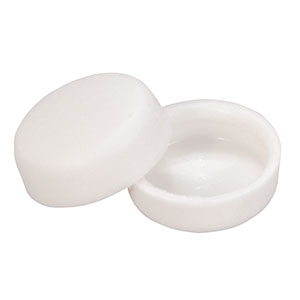

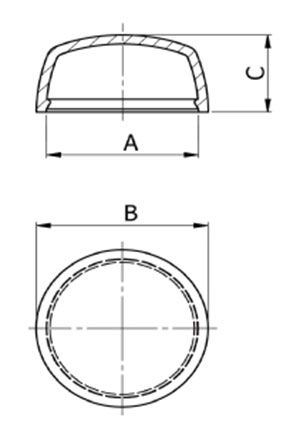

盖子
| 零件号 | 类型 | 尺寸（mm） | |||
| 黑色 | 白色 | A | B | C | |
| EV177-22020001 | EV177-22020017 | 1 | 8.5 | 10.5 | 4.3 |
| EV177-22020002 | EV177-22020018 | 1 | 10.8 | 12.2 | 5.9 |
| EV177-22020003 | EV177-22020019 | 1 | 12.8 | 14.5 | 6.5 |
| EV177-22020004 | EV177-22020020 | 1 | 14.8 | 16.5 | 7.5 |
| EV177-22020005 | EV177-22020021 | 1 | 18.8 | 20.6 | 10.2 |
| EV177-22020006 | EV177-22020022 | 2 | 10.8 | 12.2 | 6 |
| EV177-22020007 | EV177-22020023 | 2 | 12.8 | 14.2 | 8 |
| EV177-22020008 | EV177-22020024 | 2 | 14.8 | 16.6 | 9 |
| EV177-22020009 | EV177-22020025 | 2 | 18.8 | 21.3 | 12 |
| EV177-22020010 | EV177-22020026 | 2 | 24 | 26.3 | 15.5 |
| EV177-22020011 | EV177-22020027 | 3 | 10.8 | 12.2 | 6.2 |
| EV177-22020012 | EV177-22020028 | 3 | 12.8 | 14.2 | 7 |
| EV177-22020013 | EV177-22020029 | 3 | 14.8 | 16.5 | 8.5 |
| EV177-22020014 | EV177-22020030 | 3 | 18.8 | 20.6 | 10.8 |
| EV177-22020015 | EV177-22020031 | 4 | 12 | 14.2 | 5.2 |
| EV177-22020016 | EV177-22020032 | 5 | 12.2 | 3.3 | 4 |

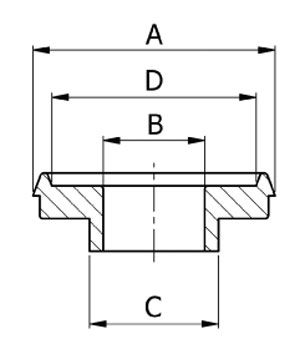

垫圈-自然色尼龙
| 零件号 | 类型 | 尺寸（mm） | |||
| A | B | C | D | ||
| EV177-22020033 | 1 | 10.8 | 4.2 | 5.9 | 8.8 |
| EV177-22020034 | 1 | 12.8 | 5.2 | 6.9 | 10.8 |
| EV177-22020035 | 1 | 14.8 | 6.2 | 7.9 | 12.5 |
| EV177-22020036 | 1 | 18.8 | 8.3 | 9.8 | 16.5 |
| EV177-22020037 | 1 | 24 | 10.4 | 11.8 | 21 |
| EV177-22020038 | 2 | 8.5 | 6 | 3.2 | - |
| EV177-22020039 | 2 | 10.8 | 8.6 | 4.2 | - |
| EV177-22020040 | 2 | 12.8 | 10.8 | 5.2 | - |
| EV177-22020041 | 2 | 14.8 | 12.8 | 6.4 | - |
| EV177-22020042 | 2 | 18.8 | 16.8 | 8.4 | - |
| EV177-22020043 | 2 | 24 | 21 | 10.5 | - |
| EV177-22020044 | 3 | 10.8 | 3.2 | - | - |
| EV177-22020045 | 3 | 12.8 | 4.3 | - | - |
| EV177-22020046 | 3 | 14.8 | 5.3 | - | - |
| EV177-22020047 | 3 | 18.8 | 6.4 | - | - |
| EV177-22020048 | 4 | 12 | 5 | 9.5 | - |
