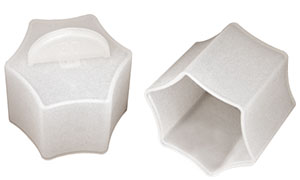

材料 | 本色LDPE |
特点 | 具有所有常用液压管接头、偶合器的尺寸 |
良好的设计使产品可被轻松的安装和摘除 | |
同样适用于保护圆形部件 |

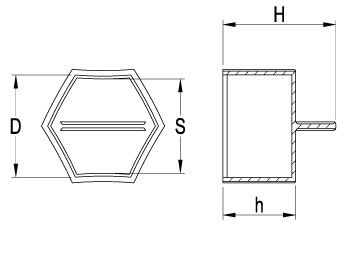

| 零件号 | 尺寸（mm） | 适用 | |||
| D | h | H | S | ||
| EV172-22040001 | 11 | 16 | 28 | 10.7 | M10 |
| EV172-22040002 | 14 | 18 | 30 | 13.7 | M12, 1/8″BSP, 7/16″UNF |
| EV172-22040003 | 16 | 20 | 32 | 15.7 | - |
| EV172-22040004 | 17 | 20 | 32 | 16.7 | M14,1/2″UNF |
| EV172-22040005 | 19 | 25 | 39 | 18.7 | M16, 1/4 BSP, 9/16″UNF |
| EV172-22040006 | 22 | 25 | 39 | 21.6 | M18, 3/8″BSP, 3/4″UNF |
| EV172-22040007 | 24 | 28 | 42 | 23.6 | - |
| EV172-22040008 | 25 | 28 | 42 | 24.6 | - |
| EV172-22040009 | 27 | 28 | 42 | 26.6 | M22,1/2″BSP,7/8″UNF |
| EV172-22040010 | 29 | 30 | 44 | 28.6 | - |
| EV172-22040011 | 30 | 30 | 44 | 29.6 | M24,5/8″BSP |
| EV172-22040012 | 32 | 30 | 44 | 31.6 | M26,3/4″BSP, 11/16″UNF |
| EV172-22040013 | 36 | 30 | 44 | 35.5 | M30 |
| EV172-22040014 | 38 | 31 | 45 | 37.5 | - |
| EV172-22040015 | 41 | 31 | 45 | 40.5 | M36,1″BSP,15/16″UNF |
| EV172-22040016 | 46 | 32 | 46 | 45.5 | - |
| EV172-22040017 | 50 | 32 | 46 | 49.5 | M45,11/4″BSP,15/8″ UNF |
