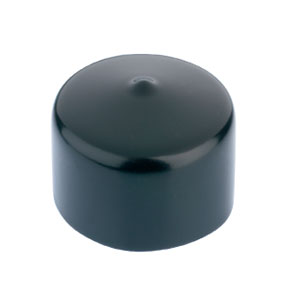

材料 | 黑色软PVC (80 邵尔硬度) |
特点 | 耐磨软PVC |
适用于多种应用场合 |

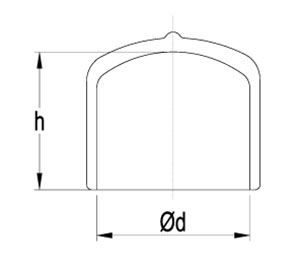

| 零件号 | 配用螺纹尺寸 | 尺寸（mm） | |||
| 公制 | BSP | UNF | d | h | |
| EV172-22030001 | - | - | - | 2 | 13 |
| EV172-22030002 | M3 | - | - | 2.8 | 13 |
| EV172-22030003 | - | - | - | 3.2 | 13 |
| EV172-22030004 | M4 | - | - | 3.6 | 13 |
| EV172-22030005 | M4 | - | - | 3.6 | 19 |
| EV172-22030006 | M4 | - | - | 3.6 | 25 |
| EV172-22030007 | - | - | - | 3.9 | 13 |
| EV172-22030008 | - | - | - | 3.9 | 19 |
| EV172-22030009 | - | - | - | 3.9 | 25 |
| EV172-22030010 | M5 | - | 3/16″ | 4.4 | 13 |
| EV172-22030011 | M5 | - | 3/16″ | 4.4 | 19 |
| EV172-22030012 | M5 | - | 3/16″ | 4.4 | 25 |
| EV172-22030013 | M5 | - | 3/16″ | 4.8 | 13 |
| EV172-22030014 | M5 | - | 3/16″ | 4.8 | 19 |
| EV172-22030015 | M5 | - | 3/16″ | 4.8 | 25 |
| EV172-22030016 | - | - | - | 5.2 | 13 |
| EV172-22030017 | - | - | - | 5.2 | 19 |
| EV172-22030018 | - | - | - | 5.2 | 25 |
| EV172-22030019 | - | - | - | 5.5 | 13 |
| EV172-22030020 | - | - | - | 5.5 | 19 |
| EV172-22030021 | - | - | - | 5.5 | 25 |
| EV172-22030022 | M6 | - | 1/4″ | 5.9 | 13 |
| EV172-22030023 | M6 | - | 1/4″ | 5.9 | 19 |
| EV172-22030024 | M6 | - | 1/4″ | 5.9 | 25 |
| EV172-22030025 | - | - | 6.4 | 13 | |
| EV172-22030026 | - | - | 6.4 | 19 | |
| EV172-22030027 | - | - | 6.4 | 25 | |
| EV172-22030028 | - | - | 7 | 13 | |
| EV172-22030029 | - | - | 7 | 19 | |
| EV172-22030030 | M8 | - | 5/16″ | 7.7 | 13 |
| EV172-22030031 | M8 | - | 5/16″ | 7.7 | 19 |
| EV172-22030032 | - | - | - | 7 | 25 |
| EV172-22030033 | M8 | - | 5/16″ | 7.7 | 25 |
| EV172-22030034 | - | - | - | 7.9 | 13 |
| EV172-22030035 | M8 | - | 5/16″ | 7.9 | 19 |
| EV172-22030036 | M8 | - | 5/16″ | 7.9 | 25 |
| EV172-22030037 | - | - | - | 8.3 | 13 |
| EV172-22030038 | - | - | - | 8.3 | 19 |
| EV172-22030039 | - | - | - | 8.3 | 25 |
| EV172-22030040 | - | - | - | 8.7 | 13 |
| EV172-22030041 | - | - | - | 8.7 | 19 |
| EV172-22030042 | - | - | - | 8.7 | 25 |
| EV172-22030043 | M10 | 1/8″ | 3/8″ | 9.5 | 13 |
| EV172-22030044 | M10 | 1/8″ | 3/8″ | 9.5 | 19 |
| EV172-22030045 | M10 | 1/8″ | 3/8″ | 9.5 | 25 |
| EV172-22030046 | - | - | - | 10.3 | 13 |
| EV172-22030047 | - | - | - | 10.3 | 19 |
| EV172-22030048 | - | - | - | 10.3 | 25 |
| EV172-22030049 | M12 | - | 7/16″ | 11.1 | 13 |
| EV172-22030050 | M12 | - | 7/16″ | 11.1 | 19 |
| EV172-22030051 | M12 | - | 7/16″ | 11.1 | 25 |
| EV172-22030052 | M12 | - | 1/2″ | 11.9 | 13 |
| EV172-22030053 | M12 | - | 1/2″ | 11.9 | 19 |
| EV172-22030054 | M12 | - | 1/2″ | 11.9 | 25 |
| EV172-22030055 | - | 1/4″ | 1/2″ | 12.7 | 13 |
| EV172-22030056 | - | 7/8″ | - | 30.2 | 50 |
| EV172-22030057 | - | 1″ | 1 1/4″ | 31.8 | 25 |
| EV172-22030058 | - | 1″ | 1 1/4″ | 31.8 | 38 |
| EV172-22030059 | - | 1″ | 1 1/4″ | 31.8 | 50 |
| EV172-22030060 | M35 | - | 1 3/8″ | 34.9 | 25 |
| EV172-22030061 | M35 | - | 1 3/8″ | 34.9 | 38 |
| EV172-22030062 | M35 | - | 1 3/8″ | 34.9 | 50 |
| EV172-22030063 | M39 | - | 1 1/2″ | 38.1 | 25 |
| EV172-22030064 | M39 | - | 1 1/2″ | 38.1 | 38 |
| EV172-22030065 | M39 | - | 1 1/2″ | 38.1 | 50 |
| EV172-22030066 | M42 | 1 1/4″ | - | 41.3 | 25 |
| EV172-22030067 | M42 | 1 1/4″ | - | 41.3 | 38 |
| EV172-22030068 | M42 | 1 1/4″ | - | 41.3 | 50 |
| EV172-22030069 | M45 | 1 3/8″ | - | 44.5 | 25 |
| EV172-22030070 | M45 | 1 3/8″ | - | 44.5 | 38 |
| EV172-22030071 | M45 | 1 3/8″ | - | 44.5 | 50 |
| EV172-22030072 | M48 | 1 1/2″ | - | 47.6 | 25 |
| EV172-22030073 | M48 | 1 1/2″ | - | 47.6 | 38 |
| EV172-22030074 | - | 1/4″ | 1 1/2″ | 12.7 | 19 |
| EV172-22030075 | - | 1/4″ | 1 1/2″ | 12.7 | 25 |
| EV172-22030076 | M14 | - | - | 13.5 | 13 |
| EV172-22030077 | M14 | - | - | 13.5 | 19 |
| EV172-22030078 | M14 | - | - | 13.5 | 25 |
| EV172-22030079 | M14 | - | - | 13.8 | 13 |
| EV172-22030080 | M14 | - | - | 13.8 | 19 |
| EV172-22030081 | M14 | - | - | 13.8 | 25 |
| EV172-22030082 | M15 | - | - | 14.3 | 13 |
| EV172-22030083 | M15 | - | - | 14.3 | 19 |
| EV172-22030084 | M15 | - | - | 14.3 | 25 |
| EV172-22030085 | - | - | - | 15.2 | 13 |
| EV172-22030086 | - | - | - | 15.2 | 19 |
| EV172-22030087 | - | - | - | 15.2 | 25 |
| EV172-22030088 | M16 | 3/8″ | - | 15.9 | 13 |
| EV172-22030089 | M16 | 3/8″ | - | 15.9 | 19 |
| EV172-22030090 | M16 | 3/8″ | - | 15.9 | 25 |
| EV172-22030091 | M18 | - | - | 17.4 | 13 |
| EV172-22030092 | M18 | - | - | 17.4 | 19 |
| EV172-22030093 | M18 | - | - | 17.4 | 25 |
| EV172-22030094 | M20 | - | 3/4″ | 19.1 | 13 |
| EV172-22030095 | M20 | - | 3/4″ | 19.1 | 19 |
| EV172-22030096 | M20 | - | 3/4″ | 19.1 | 25 |
| EV172-22030097 | - | - | - | 19.9 | 13 |
| EV172-22030098 | - | - | - | 19.9 | 19 |
| EV172-22030099 | - | - | - | 19.9 | 25 |
| EV172-22030100 | - | 1/2″ | - | 20.6 | 13 |
| EV172-22030101 | - | 1/2″ | - | 20.6 | 25 |
| EV172-22030102 | - | 1/2″ | - | 20.6 | 38 |
| EV172-22030103 | M22 | - | 5/16″ | 21.4 | 13 |
| EV172-22030104 | M22 | - | - | 21.4 | 25 |
| EV172-22030105 | M22 | - | - | 21.4 | 38 |
| EV172-22030106 | - | 5/8″ | 7/8″ | 22.2 | 13 |
| EV172-22030107 | - | 5/8″ | 7/8″ | 22.2 | 25 |
| EV172-22030108 | - | 5/8″ | 7/8″ | 22.2 | 38 |
| EV172-22030109 | M24 | - | - | 23.8 | 13 |
| EV172-22030110 | M24 | - | - | 23.8 | 25 |
| EV172-22030111 | M24 | - | - | 23.8 | 38 |
| EV172-22030112 | M25 | - | - | 24.6 | 13 |
| EV172-22030113 | M25 | - | - | 24.6 | 25 |
| EV172-22030114 | M25 | - | - | 24.6 | 38 |
| EV172-22030115 | - | - | 1″ | 25.4 | 13 |
| EV172-22030116 | - | - | 1″ | 25.4 | 25 |
| EV172-22030117 | - | - | 1″ | 25.4 | 38 |
| EV172-22030118 | M27 | 3/4″ | - | 26.3 | 13 |
| EV172-22030119 | M27 | 3/4″ | - | 26.3 | 25 |
| EV172-22030120 | M27 | 3/4″ | - | 26.3 | 38 |
| EV172-22030121 | M27 | - | - | 26.9 | 13 |
| EV172-22030122 | M27 | - | - | 26.9 | 25 |
| EV172-22030123 | M27 | - | - | 26.9 | 38 |
| EV172-22030124 | M30 | 7/8″ | 1 1/8″ | 28.6 | 25 |
| EV172-22030125 | M30 | 7/8″ | 1 1/8″ | 28.6 | 38 |
| EV172-22030126 | M30 | 7/8″ | 1 1/8″ | 28.6 | 50 |
| EV172-22030127 | - | 7/8″ | - | 30.2 | 25 |
| EV172-22030128 | - | 7/8″ | - | 30.2 | 38 |
| EV172-22030129 | - | 11/2″ | - | 47.6 | 50 |
| EV172-22030130 | - | - | 2″ | 50.8 | 25 |
| EV172-22030131 | - | - | 2″ | 50.8 | 38 |
| EV172-22030132 | - | - | 2″ | 50.8 | 50 |
| EV172-22030133 | - | 13/4″ | - | 53.9 | 38 |
| EV172-22030134 | - | 13/4″ | - | 53.9 | 50 |
| EV172-22030135 | M58 | 21/4″ | - | 57.2 | 38 |
| EV172-22030136 | M58 | 21/4″ | - | 57.2 | 50 |
| EV172-22030137 | - | 23/8″ | - | 60.3 | 38 |
| EV172-22030138 | - | 23/8″ | - | 60.3 | 50 |
| EV172-22030139 | - | 21/2″ | - | 63.5 | 38 |
| EV172-22030140 | - | 21/2″ | - | 63.5 | 50 |
| EV172-22030141 | - | - | - | 66.7 | 38 |
| EV172-22030142 | - | - | - | 69.8 | 38 |
| EV172-22030143 | - | - | - | 69.8 | 50 |
| EV172-22030144 | - | 3″ | - | 76.2 | 38 |
| EV172-22030145 | - | 3″ | - | 76.2 | 50 |
