材料 | 低密度聚乙烯(Ld-PE) |
特点 | 保护，密封和覆盖 |
注意 | 更多尺寸可供选择，详情请联系我司营业人员 |

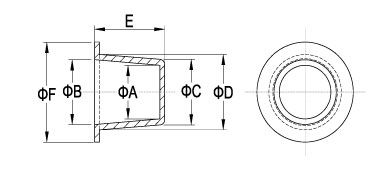

| 零件号 | 颜色 | A | B | C | D | E | F | |
| EV172-22050001 | 红色 | 1.5 | 3 | 3.0 | 4.4 | 9.8 | 7.8 | |
| EV172-22050002 | 红色 | 2.7 | 4.2 | 4.0 | 5.5 | 9.8 | 7.9 | |
| EV172-22050003 | 红色 | 4.6 | 6 | 6.0 | 7.5 | 9.8 | 10.8 | |
| EV172-22050004 | 红色 | 6.2 | 7.5 | 7.5 | 9.0 | 9.8 | 12.4 | |
| EV172-22050005 | 红色 | 7.6 | 9.2 | 9.5 | 10.7 | 10.3 | 14.2 | |
| EV172-22050006 | 红色 | 9 | 10.8 | 10.5 | 12.2 | 10.0 | 15.2 | |
| EV172-22050007 | 红色 | 10.1 | 12.2 | 11.8 | 13.3 | 11.5 | 16.6 | |
| EV172-22050008 | 红色 | 11.8 | 14 | 13.3 | 15.2 | 12.5 | 18.6 | |
| EV172-22050009 | 红色 | 14 | 16.2 | 16.0 | 17.5 | 12.5 | 21.0 | |
| EV172-22050010 | 红色 | 14.3 | 15.8 | 15.6 | 17.2 | 5.7 | 21.9 | |
| EV172-22050011 | 红色 | 15.4 | 17.7 | 16.7 | 19.0 | 12.7 | 22.2 | |
| EV172-22050012 | 红色 | 17.1 | 19.6 | 18.6 | 21.1 | 14.8 | 25.0 | |
| EV172-22050013 | 红色 | 18.6 | 20.7 | 20.3 | 22.5 | 16.7 | 25.5 | |
| EV172-22050014 | 红色 | 19.2 | 21.5 | 20.7 | 23.0 | 14.7 | 26.4 | |
| HOT | EV172-22050015 | 红色 | 20.8 | 23 | 22.5 | 24.6 | 14.7 | 27.8 |
| EV172-22050016 | 红色 | 23 | 25.8 | 25.0 | 27.8 | 15.2 | 30.8 | |
| EV172-22050017 | 红色 | 24.4 | 27.3 | 26.0 | 28.8 | 16.4 | 31.7 | |
| EV172-22050018 | 红色 | 25.8 | 29.5 | 27.2 | 30.5 | 16.4 | 32.3 | |
| EV172-22050019 | 红色 | 29 | 32.1 | 30.5 | 33.6 | 16.4 | 37.0 | |
| EV172-22050020 | 红色 | 30.3 | 33.2 | 31.6 | 34.5 | 17.5 | 37.9 | |
| EV172-22050021 | 红色 | 31.4 | 35 | 33.4 | 36.5 | 18.3 | 40.0 | |
| EV172-22050022 | 红色 | 35.8 | 39 | 37.8 | 41.0 | 18.3 | 44.2 | |
| EV172-22050023 | 红色 | 38.3 | 41.5 | 39.8 | 42.8 | 20.3 | 46.0 | |
| EV172-22050024 | 红色 | 40.4 | 43.8 | 41.8 | 45.0 | 20.3 | 48.8 | |
| EV172-22050025 | 红色 | 42.5 | 45.5 | 44.2 | 47.0 | 20.3 | 50.0 | |
| EV172-22050026 | 红色 | 43.4 | 47.5 | 45.2 | 49.0 | 25.6 | 53.3 | |
| EV172-22050027 | 红色 | 46 | 51.5 | 48.2 | 52.5 | 22.5 | 55.6 | |
| EV172-22050028 | 红色 | 52.5 | 57 | 54.0 | 58.0 | 22.3 | 62.0 | |
| EV172-22050029 | 红色 | 57 | 59.5 | 58.5 | 61.0 | 15.0 | 64.4 | |
| EV172-22050030 | 红色 | 58 | 63 | 59.5 | 64.0 | 24.2 | 67.2 | |
| EV172-22050031 | 红色 | 59.5 | 63.5 | 61.0 | 65.0 | 29.4 | 70.2 | |
| EV172-22050032 | 红色 | 69 | 73 | 71.3 | 74.0 | 25.0 | 81.7 | |
| EV172-22050033 | 红色 | 72.2 | 76 | 74.0 | 77.8 | 25.0 | 86.0 | |
| EV172-22050034 | 红色 | 77.2 | 80.2 | 79.0 | 82.0 | 15.0 | 87.0 | |
| EV172-22050035 | 红色 | 81.5 | 85.5 | 83.5 | 87.0 | 24.8 | 94.0 | |
| EV172-22050036 | 红色 | 87 | 91 | 89.0 | 93.0 | 25.0 | 98.0 | |
| EV172-22050037 | 红色 | 97 | 101 | 99.0 | 103.0 | 24.5 | 111 | |
| EV172-22050038 | 红色 | 106.8 | 111 | 109.0 | 113.2 | 24.5 | 121 | |
| EV172-22050039 | 红色 | 121.8 | 126 | 124.0 | 128.2 | 24.5 | 136 | |
| EV172-22050040 | 红色 | 144.8 | 149 | 146.0 | 151.0 | 24.5 | 157 | |
| EV172-22050041 | 红色 | 156.2 | 161 | 159.0 | 163.8 | 24.5 | 170 |
