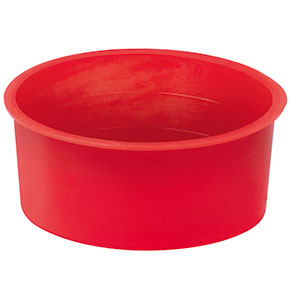

材料 | 红色 LDPE |
特点 | 可以作为盖子和塞子使用 |
简易的装配和拆除 | |
140多种尺寸 | |
提供在存储和运输中不受损伤, 防尘, 防潮和防腐蚀的保护 |

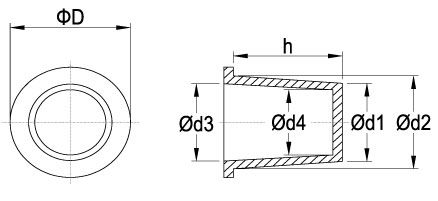

| 零件号 | 尺寸（mm） | 配用螺纹尺寸 | ||||||
| d1 | d2 | d3 | d4 | D | h | 盖 | 塞 | |
| EV172-22010001 | 2.9 | 4.6 | 3 | 1.3 | 7.9 | 9.5 | ||
| EV172-22010002 | 4.4 | 6.1 | 4.5 | 2.8 | 9.5 | 9.5 | M4 | 1⁄4" UNF |
| EV172-22010003 | 4.7 | 8.5 | 5.7 | 2.5 | 11.7 | 22.5 | ||
| EV172-22010004 | 5.6 | 7 | 5.4 | 4 | 10.5 | 8.4 | ||
| EV172-22010005 | 6.2 | 7.6 | 5.9 | 5 | 11.1 | 9.5 | M6 | M8, 5/16" UNF |
| EV172-22010006 | 7.7 | 9.3 | 7 | 5.5 | 12.7 | 8 | 1/4" UNF | |
| EV172-22010007 | 7.7 | 9.1 | 7.7 | 6.3 | 12.7 | 9.5 | 3/8" UNF | |
| EV172-22010008 | 8.4 | 10 | 8.2 | 6.9 | 13.5 | 9.5 | M8 | M10 |
| EV172-22010009 | 8.6 | 10.3 | 8.2 | 7 | 13.7 | 9.8 | ||
| EV172-22010010 | 9 | 10.7 | 8.8 | 7.5 | 13.9 | 11.5 | ||
| EV172-22010011 | 9.4 | 10.8 | 9.3 | 7.7 | 14 | 8.5 | ||
| EV172-22010012 | 10 | 11.8 | 10 | 8.5 | 15 | 9.5 | 3⁄8" UNF | M12 |
| EV172-22010013 | 10.6 | 12.2 | 10 | 8.6 | 15.6 | 9.8 | ||
| EV172-22010014 | 10.9 | 12.3 | 10.7 | 9.1 | 15.9 | 9.3 | 1⁄8" BSP | 1⁄4" BSP, 1⁄2" UNF |
| EV172-22010015 | 11.2 | 14 | 12.1 | 9.2 | 17.5 | 18.5 | ||
| EV172-22010016 | 11.3 | 12.9 | 10.9 | 9.4 | 16.3 | 8.5 | ||
| EV172-22010017 | 11.3 | 13.2 | 11.6 | 9.8 | 17 | 11 | ||
| EV172-22010018 | 11.5 | 13 | 11.5 | 10 | 16.7 | 9.5 | M14x1.5 | |
| EV172-22010019 | 12 | 14.8 | 12 | 10.5 | 17.5 | 11 | ||
| EV172-22010020 | 12.1 | 13.9 | 12.3 | 10.6 | 17.5 | 11 | M12 | 9⁄16" UNF |
| EV172-22010021 | 12.5 | 14 | 12 | 10.5 | 17.5 | 8.9 | 7⁄16" UNF | |
| EV172-22010022 | 12.8 | 15.1 | 13.2 | 10.7 | 18.5 | 23.1 | ||
| EV172-22010023 | 13.6 | 15.3 | 13.7 | 12.1 | 19 | 11.2 | 1⁄4" BSP, 1⁄2" UNF | M16 |
| EV172-22010024 | 14.2 | 16 | 14.4 | 12.7 | 19 | 12.1 | M14 | 3⁄8" BSP |
| EV172-22010025 | 14.7 | 17 | 15.4 | 13.2 | 20.6 | 12.7 | M18 x 1.5 | |
| EV172-22010026 | 14.9 | 16.4 | 14.5 | 13.5 | 21 | 11.5 | ||
| EV172-22010027 | 15.5 | 17.1 | 15 | 13.4 | 20.6 | 8.5 | ||
| EV172-22010028 | 16.1 | 17.6 | 15.5 | 14.5 | 21 | 8.5 | ||
| EV172-22010029 | 16.4 | 18.3 | 16.9 | 14.3 | 22.2 | 12.3 | M16, 5⁄8" UNF | 3⁄4" UNF |
| EV172-22010030 | 16.6 | 18.5 | 16.5 | 14.5 | 21.9 | 13 | ||
| EV172-22010031 | 17.1 | 19.4 | 17.8 | 15.5 | 22 | 13 | 3⁄8"BSP | M20 x 1.5 |
| EV172-22010032 | 17.2 | 20.2 | 18 | 15.5 | 24.2 | 18 | ||
| EV172-22010033 | 17.5 | 20.1 | 18.5 | 15.9 | 24 | 14.5 | M18 x 1.5, M18 x 2 | 1⁄2" BSP |
| EV172-22010034 | 17.7 | 19.6 | 17.3 | 15.2 | 22.2 | 12.7 | 3⁄8" BSP | M20 |
| EV172-22010035 | 17.8 | 20 | 18.3 | 16.4 | 23.8 | 13.4 | M18 | 1⁄2" BSP |
| EV172-22010036 | 18.3 | 21.4 | 19.3 | 16.4 | 25.4 | 17.5 | ||
| EV172-22010037 | 18.5 | 20.9 | 19.3 | 17.1 | 24.6 | 14.3 | 3⁄4" UNF | M22 x 1.5 |
| EV172-22010038 | 19 | 21.5 | 19.7 | 17.6 | 25.8 | 14.3 | M22 x 1.5, 7⁄8" UNF | |
| EV172-22010039 | 19.4 | 22.5 | 21.3 | 18 | 26.5 | 19 | ||
| EV172-22010040 | 20.5 | 23.2 | 21.2 | 18.5 | 27.2 | 17.5 | ||
| EV172-22010041 | 21.2 | 23.2 | 21.7 | 19.3 | 27.3 | 12.3 | M24 | |
| EV172-22010042 | 21.3 | 23.2 | 21.5 | 19.2 | 27 | 15.9 | M20 x 2.5, 1⁄2" BSP | 7⁄8" BSP |
| EV172-22010043 | 22 | 24.8 | 23.2 | 20.4 | 29 | 17 | M22 x 1.5 | |
| EV172-22010044 | 22 | 25 | 23 | 20.5 | 28.5 | 15.9 | M22 | 1" UNF |
| EV172-22010045 | 22.5 | 25.5 | 23.3 | 20 | 28.9 | 17.8 | 7⁄8" UNF | |
| EV172-22010046 | 22.7 | 24.9 | 22.7 | 20.8 | 27 | 12 | ||
| EV172-22010047 | 23.4 | 26.4 | 24.4 | 21.4 | 29.3 | 17.5 | M24 | 3⁄4" BSP, M27, M26 |
| EV172-22010048 | 24 | 26.9 | 25 | 21.9 | 31 | 18 | ||
| EV172-22010049 | 24.6 | 29.5 | 27.5 | 22.5 | 34 | 27.5 | ||
| EV172-22010050 | 24.7 | 27.7 | 26.1 | 23.2 | 32 | 19 | M25, 1" UNF | M28, M30, 11⁄8" UNF |
| EV172-22010051 | 25.2 | 29.2 | 27.7 | 23.7 | 33 | 19 | ||
| EV172-22010052 | 26.6 | 29.7 | 28.3 | 24.6 | 31.6 | 26.3 | 3⁄4" BSP | 7⁄8" BSP |
| EV172-22010053 | 28 | 30.9 | 29 | 26.5 | 35.3 | 19 | M27, M28 | M30 x 1.5 |
| EV172-22010054 | 29.2 | 31.2 | 30.3 | 28 | 34.7 | 12.7 | M22 x 2 | |
| EV172-22010055 | 30 | 32.6 | 30.7 | 27.5 | 36.7 | 15.2 | M30 | M33,1" BSP |
| EV172-22010056 | 30.5 | 33.3 | 31.1 | 28.4 | 37 | 14.5 | 7⁄8" BSP | 1 5⁄16" x 12 UNF |
| EV172-22010057 | 31.1 | 34.3 | 32 | 29.3 | 38.1 | 17.5 | 1 3⁄8" UNF, M36 | |
| EV172-22010058 | 31.1 | 34.4 | 32.8 | 29.8 | 38.1 | 19 | M33, M32, 1 1⁄4" UNF | M36 |
| EV172-22010059 | 31.6 | 36.3 | 34 | 29.8 | 40.2 | 24.1 | 1 5⁄16"BSP | 1 5⁄16"BSP |
| EV172-22010060 | 33.3 | 34.4 | 32.8 | 31.4 | 38.1 | 9.5 | ||
| EV172-22010061 | 33.3 | 37.2 | 35.6 | 31.7 | 41.6 | 22.2 | 1" BSP | M38, 11⁄8BSP |
| EV172-22010062 | 33.9 | 38.3 | 36.5 | 31.9 | 42.3 | 24.5 | ||
| EV172-22010063 | 33.9 | 37.3 | 35.8 | 32 | 42.2 | 12.3 | 13⁄8"UNF | 1 1⁄8"BSP |
| EV172-22010064 | 34.9 | 36.4 | 35.2 | 33.1 | 42.7 | 8.2 | ||
| EV172-22010065 | 35.9 | 40.2 | 37.5 | 33.2 | 44.1 | 24.5 | ||
| EV172-22010066 | 36.3 | 38.3 | 37 | 34.6 | 42.3 | 12 | ||
| EV172-22010067 | 36.9 | 40.6 | 39 | 35 | 44 | 22.5 | M38 | 11⁄4"BSP |
| EV172-22010068 | 38.6 | 40.6 | 39 | 37.1 | 44.5 | 12.7 | 11⁄2"UNF | |
| EV172-22010069 | 39.6 | 42.7 | 41.1 | 38.2 | 47.6 | 18.5 | M39, M40 | M42 |
| EV172-22010070 | 40.8 | 44.7 | 41.8 | 37.7 | 49 | 24 | ||
| EV172-22010071 | 41.4 | 44.8 | 43 | 39.7 | 49.2 | 19 | 11⁄4" BSP | M45 x 2 |
| EV172-22010072 | 42.5 | 44.8 | 43 | 40.7 | 50.7 | 12.6 | ||
| EV172-22010073 | 43.4 | 48.5 | 47 | 42 | 53.3 | 24.5 | ||
| EV172-22010074 | 44.1 | 46.7 | 45.7 | 42.8 | 49.8 | 18.4 | ||
| EV172-22010075 | 44.4 | 47.7 | 46.1 | 42.8 | 51 | 19 | M45 x 1.5/2/3 | M48 x 2, 17⁄8"JIC/UNF,11⁄2" BSP |
| EV172-22010076 | 45.2 | 49 | 47 | 43.7 | 53.4 | 24.5 | 1 3⁄8" BSP | M48, 11⁄2"BSP |
| EV172-22010077 | 45.9 | 46.3 | 45 | 44.3 | 50.8 | 9.5 | M48 | |
| EV172-22010078 | 46 | 50 | 48 | 44.3 | 54 | 24.8 | ||
| EV172-22010079 | 47.2 | 51.9 | 48.7 | 44.5 | 55.8 | 24 | ||
| EV172-22010080 | 47.5 | 50.3 | 49 | 45.2 | 54 | 25 | ||
| EV172-22010081 | 48 | 52.7 | 50.7 | 46.3 | 57.1 | 25.4 | ||
| EV172-22010082 | 48.6 | 51.2 | 48.9 | 46.7 | 55.5 | 18.7 | M48, 11⁄2"BSP | M52 |
| EV172-22010083 | 49.8 | 54 | 52 | 47.5 | 58 | 24.3 | ||
| EV172-22010084 | 51.1 | 54.4 | 52 | 47.7 | 57 | 25 | ||
| EV172-22010085 | 51.5 | 54.1 | 52 | 49.6 | 58.3 | 18.5 | ||
| EV172-22010086 | 53.5 | 57 | 55.3 | 51.2 | 62.4 | 25.1 | 1 3⁄4"BSP | M56, M55 |
| EV172-22010087 | 54 | 58.4 | 55 | 50.8 | 62.4 | 24.5 | ||
| EV172-22010088 | 55 | 61 | 59 | 52.2 | 65 | 25 | ||
| EV172-22010089 | 55.4 | 58.8 | 57.2 | 53.7 | 65 | 25.1 | M58 | 2"BSP |
| EV172-22010090 | 57.5 | 57.6 | 56.1 | 55.2 | 63.6 | 12.8 | ||
| EV172-22010091 | 59.3 | 67.3 | 64.1 | 56.7 | 70.3 | 31.7 | ||
| EV172-22010092 | 59.6 | 62.6 | 61 | 57 | 66.7 | 24.6 | 2" BSP | |
| EV172-22010093 | 62 | 66.4 | 64.3 | 59 | 71 | 28 | ||
| EV172-22010094 | 63.3 | 69.8 | 67.8 | 61.5 | 73 | 25.4 | ||
| EV172-22010095 | 64.5 | 67.3 | 65.6 | 62.1 | 70.6 | 15.8 | ||
| EV172-22010096 | 68.1 | 70.9 | 69.3 | 66.3 | 74.6 | 19 | ||
| EV172-22010097 | 70 | 75.8 | 74 | 68.1 | 79.4 | 25.4 | M76, M75, 21⁄2"BSP | |
| EV172-22010098 | 74 | 77 | 73.9 | 71.5 | 82.5 | 18.7 | ||
| EV172-22010099 | 74 | 76.8 | 73.4 | 70 | 80 | 24.4 | ||
| EV172-22010100 | 76.8 | 82.2 | 80.8 | 74.8 | 85.7 | 25.4 | ||
| EV172-22010101 | 77.1 | 80.7 | 78.2 | 74.8 | 85.7 | 19 | 2 1/2 BSP | |
| EV172-22010102 | 80 | 86.1 | 82 | 77.5 | 89.8 | 25.1 | ||
| EV172-22010103 | 84.2 | 90.8 | 88.3 | 82.7 | 94.5 | 28 | 3'BSP | |
| EV172-22010104 | 87.5 | 93.6 | 90.5 | 84.3 | 96.7 | 34.3 | ||
| EV172-22010105 | 88.1 | 93.3 | 89.9 | 85.1 | 96.5 | 28.6 | ||
| EV172-22010106 | 92.1 | 97 | 94 | 88.3 | 100 | 32 | ||
| EV172-22010107 | 94.5 | 100.6 | 97 | 91 | 103.6 | 34.5 | ||
| EV172-22010108 | 98 | 102 | 98.5 | 94.8 | 107.2 | 24.7 | ||
| EV172-22010109 | 98.2 | 103.3 | 99 | 95 | 106 | 28.8 | ||
| EV172-22010110 | 101.9 | 107.5 | 103 | 98 | 109 | 28.6 | ||
| EV172-22010111 | 106.7 | 111.7 | 107.4 | 107.4 | 113.3 | 28.6 | ||
| EV172-22010112 | 108 | 114.1 | 111.6 | 106.5 | 118.5 | 35.2 | ||
| EV172-22010113 | 111.5 | 117.6 | 115 | 107.5 | 122 | 35 | ||
| EV172-22010114 | 124 | 128 | 125 | 121 | 134 | 23 | ||
| EV172-22010115 | 129 | 135.1 | 132 | 124 | 139.5 | 36.5 | ||
| EV172-22010116 | 139.5 | 145.6 | 140 | 135 | 150 | 36.5 | ||
| EV172-22010117 | 146.8 | 151 | 148.6 | 142.8 | 159.5 | 33 | ||
| EV172-22010118 | 156 | 162.3 | 158.8 | 151.8 | 167.3 | 36.7 | ||
