特点 最大旋转角度270°
注意 另有银色涂层锌合金材质的铰链以及偏心铰链可选，详情请咨询我司营业人员

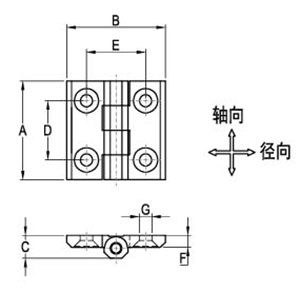

| 零件号 | 合页材质 | 旋转销材质 | A | B | C | D | E | F | G | 重量(g) | 径向载荷(N) | 轴向载荷(N) |
| EV191-03010001 | 黑色亚光 涂层锌合金 | AISI303 不锈钢 | 30 | 30 | 7.5 | 18 | 18 | 4 | 4.3 | 19 | 1200 | 500 |
| EV191-03010002 | 40 | 40 | 9 | 25 | 25 | 5 | 5.3 | 46 | 2100 | 1150 | ||
| EV191-03010003 | 50 | 50 | 11.5 | 30 | 30 | 6 | 6.4 | 88 | 3500 | 2100 | ||
| EV191-03010004 | 60 | 60 | 15 | 36 | 36 | 8 | 8.3 | 150 | 6000 | 3200 | ||
| EV191-03010008 | 喷砂亚光 不锈钢 | AISI316Ti 不锈钢 | 30 | 30 | 7.5 | 18 | 18 | 4 | 4.3 | 25 | 1700 | 750 |
| EV191-03010009 | 40 | 40 | 9 | 25 | 25 | 5 | 5.3 | 58 | 4000 | 2100 | ||
| EV191-03010010 | 50 | 50 | 11.5 | 30 | 30 | 6 | 6.4 | 107 | 6500 | 2550 | ||
| EV191-03010011 | 60 | 60 | 15 | 36 | 36 | 8 | 8.3 | 203 | 10000 | 5000 | ||
| EV191-03010015 | 本色亚光 阳极氧化铝 | AISI316Ti 不锈钢 | 30 | 30 | 7.5 | 18 | 18 | 4 | 4.3 | 11 | 1200 | 550 |
| EV191-03010016 | 40 | 40 | 9 | 25 | 25 | 5 | 5.3 | 22 | 2000 | 1060 | ||
| EV191-03010017 | 50 | 50 | 11.5 | 30 | 30 | 6 | 6.4 | 48 | 3000 | 2250 | ||
| EV191-03010018 | 60 | 60 | 15 | 36 | 36 | 8 | 8.3 | 90 | 5000 | 4050 |
